PU timing belt
- Brand:
- Type:
PU timing belt

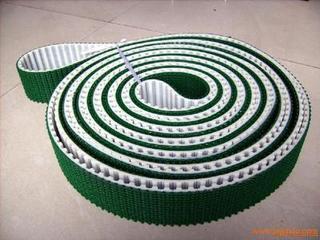

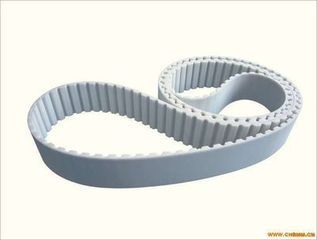

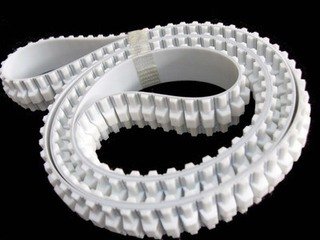

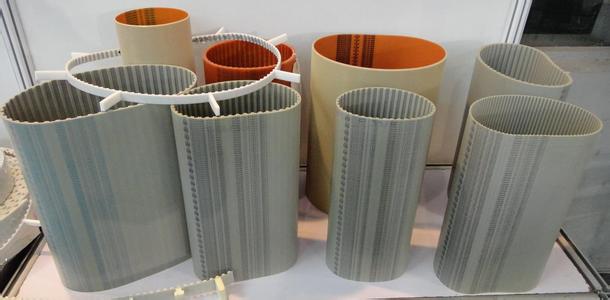

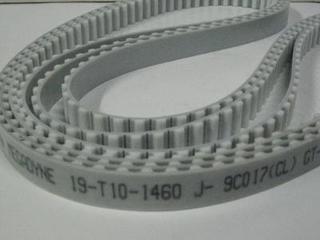

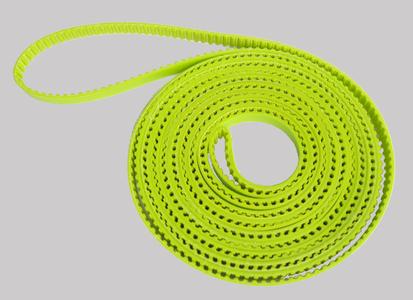

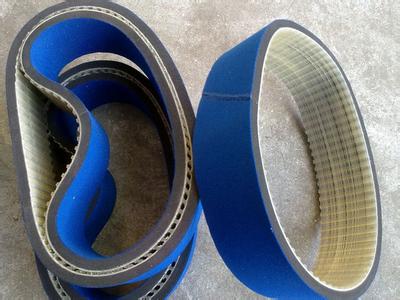

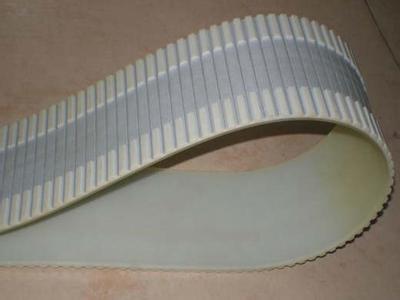

型号种类 3M、5M、8M、XL、L、H、T5、T10、AT5、AT10 供货特点 1、开口带均可接驳成环形带，齿面可加绿色弹力布
Types 3M, 5M, 8M, XL, L, H, T5, T10, AT5, AT10 supply characteristics of 1, opening band can be connected into a ring belt, tooth surface can add green elastic cloth
2、可连续长度，带子最大宽度为50mm
2, continuous length, maximum width of 50mm.
型号规格与参数
Specifications and parameters
材料选用及产品特性
Selection of material and the characteristics of the product
产品选型图
Product selection chart
相关注意事项
The relevant matters needing attention
型号
Model
节距 (mm)
Pitch (mm)
齿高 (mm)
The tooth height (mm)
带厚 (mm)
The strip thickness (mm)
|
型号 |
节距 (mm) |
齿高 (mm) |
带厚 (mm) |
|
XL |
5.080 |
1.27 |
2.30 |
|
L |
9.525 |
1.91 |
3.60 |
|
H |
12.70 |
2.29 |
4.30 |
|
3M |
3 |
1.17 |
2.4 |
|
5M |
5 |
2.06 |
3.8 |
|
8M |
8 |
3.36 |
6.00 |
|
T5 |
5 |
1.20 |
2.20 |
|
T10 |
10 |
2.50 |
4.50 |
|
AT5 |
5 |
1.20 |
2.70 |
|
AT10 |
10 |
2.50 |
5.00 |
