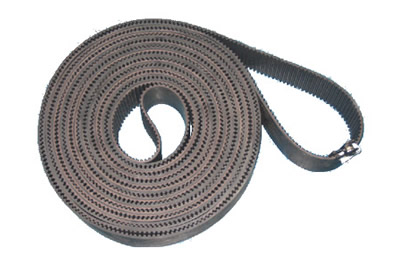

Annular long synchronous belt and synchronous belts for general drive transmission performance is basically similar, can be widely used in textile, light industry, chemical industry, machine tools and other mechanical transmission of power use, should be multi axis drive, can be in two shaft transmission center distance below 15M and the environment is very bad driving situations work.

特长同步带规格型号尺寸表

Special synchronous belt specifications size table

型号 规格代号 节线长 齿数

Type designation pitch length number of teeth

XL 2130～7874 5410.20～19999.96 1065～3937

XL 2130 ~ 78745410.20 ~ 19999.961065 ~ 3937

L 1991～13778 5057.75～34994.85 351～3674

L 1991 ~ 137785057.75 ~ 34994.85351 ~ 3674

H 2365～13780 6007.10～35001.20 473～2756

H 2365 ~ 137806007.10 ~ 35001.20473 ~ 2756

XH 2284～13781 5800.725～35004.375 261～1575

XH 2284 ~ 137815800.725 ~ 35004.375261 ~ 1575

XXH 1812～13775 4603.75～34988.50 145～1102

XXH 1812 ~ 137754603.75 ~ 34988.50145 ~ 1102

T5 4080～20000 4080.00～20000.00 816～4000

T5 4080 ~ 200004080 ~ 20000.00816 ~ 4000

T10 7060～35000 7060.00～35000.00 706～3500

T10 7060 ~ 350007060 ~ 35000.00706 ~ 3500

T20 5020～35000 5020.00～35000.00 251～1750

T20 5020 ~ 350005020 ~ 35000.00251 ~ 1750

HTD-5M 7005～20000 7005.00～20000.00 1401～4000

HTD-5M 7005 ~ 200007005 ~ 20000.001401 ~ 4000

HTD-8M 6888～35000 6888.00～35000.00 861～4375

HTD-8M 6888 ~ 350006888 ~ 35000.00861 ~ 4375

HTD-14M 6874～35000 6874.00～35000.00 491～2500

HTD-14M 6874 ~ 350006874 ~ 35000.00491 ~ 2500

AT5 3400～20000 3400.00～35000.00 680～4000

AT5 3400 ~ 200003400 ~ 35000.00680 ~ 4000

AT10 3350～35000 3350.00～35000.00 335～3500

AT10 3350 ~ 350003350 ~ 35000.00335 ~ 3500

AT20 3400～35000 3400.00～35000.00 170～1750

AT20 3400 ~ 350003400 ~ 35000.00170 ~ 1750

S5M 4005～20000 4005.00～20000.00 801～4000

S5M 4005 ~ 200004005 ~ 20000.00801 ~ 4000

S8M 6648～35000 6648.00～35000.00 831～4375

S8M 6648 ~ 350006648 ~ 35000.00831 ~ 4375

S14M 4410～35000 4410.00～35000.00 315～2500

S14M 4410 ~ 350004410 ~ 35000.00315 ~ 2500

公司还可生产宽度在25mm以下的开口特长型同步带

The company can also produce width in the opening long type 25mm below the belt
