Your Position: Home > Product > Rubber synchronous belt

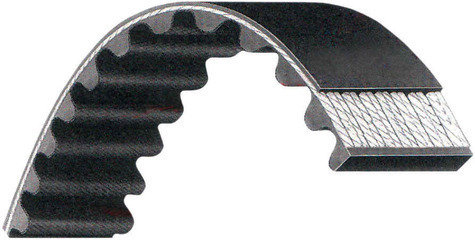

Arc tooth synchronous belt, industrial

Update: 2014/6/18      View:
  • Brand:
  • Type:
  • Order Online
Introduction

Arc tooth synchronous belt, industrial

圆弧齿工业同步带
  欲参考同步带产品型号的详细尺寸，请点击“ 详细规格”

齿型代号

型号 节距 (mm) 齿高 (mm) 带厚 (mm)

HTD

2M 2 0.75 1.36
3M 3 1.17 2.4
5M 5 2.06 3.8
8M 8 3.36 6.00
14M 14 6.02 10.00
20M 20 8.4 13.20

STPD/STS

S2M 2 0.76 1.36
S3M 3 1.14 2.20
S4.5M 4.5 1.71 2.81
S5M 5 1.91 3.4
S8M 8 3.05 5.3
S14M 14 5.3 10.2

RPP/HPPD

2M 2 0.76 1.36
3M 3 1.15 1.9
5M 5 1.95 3.5
8M 8 3.2 5.5
14M 14 6.00 10

HTD

STPD / STS

RPD / HPPD
